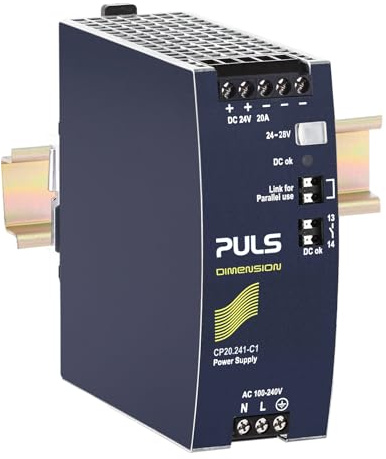

The PULS CP20.241 is a rail-mounted power supply unit designed for industrial applications. It features a wide AC input range of 100-240V and an output of 24V DC at a maximum current of 20A, delivering 480W. This power supply boasts high efficiency of up to 95.6%, performing very well even at partial load. It offers a 20% power reserve and ensures easy triggering of fuses with 3 times the rated current for 12ms. The unit exhibits secure HiccupPLUS overload behavior and active harmonic correction (PFC) with negligible input current. It provides full output power between -25°C and +60°C, with a maximum operating temperature of 70°C and a minimum of -25°C. Additional features include a DC-OK signal output and load distribution for parallel operation. The width of the unit is only 48mm.
FAQ
The input voltage range is AC 100-240V.
The maximum output current is 20A, and the maximum power is 480W.
The unit operates from -25°C to +60°C, with a maximum operating temperature of 70°C.
Yes, it features secure HiccupPLUS overload behavior and can handle 3 times the rated current for 12ms for fuse triggering.
