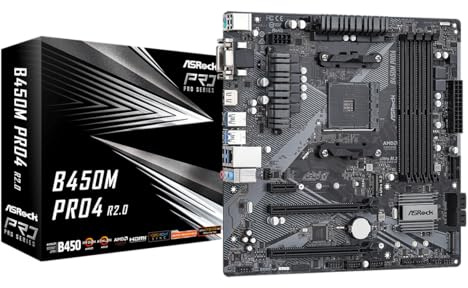

The ASRock B450M Pro4 R2.0 is a Micro-ATX motherboard designed for AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors. It features a 10-phase power design for stable performance and overclocking. The motherboard supports DDR4 3200MHz memory with a maximum capacity of 128GB across four DIMM slots and supports Extreme Memory Profile (XMP). For storage, it offers 4 SATA3 6Gb/s connectors with RAID support, one Ultra M.2 socket (PCIe Gen3 x4) and one M.2 socket (SATA3). Connectivity includes 2 USB 3.2 Gen2 ports (Type-A and Type-C) on the rear, 6 USB 3.2 Gen1 ports (2 front, 4 rear), and 2 USB 2.0 ports. Networking is handled by a Realtek Gigabit LAN controller. Audio is provided by a 7.1 CH HD Audio codec (Realtek ALC892/897). Graphics output options include D-Sub, DVI-D, and HDMI, supporting up to 4K resolution via HDMI. The motherboard has a Sapphire Black PCB and a High Density Glass Fabric PCB design. It supports AMD Quad CrossFireX and CrossFireX. The form factor is Micro-ATX (9.6-in x 9.6-in).
FAQ
The motherboard supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors.
The motherboard supports a maximum system memory capacity of 128GB across four DDR4 DIMM slots.
It features 4 SATA3 6Gb/s connectors with RAID support, one Ultra M.2 socket (PCIe Gen3 x4), and one M.2 socket (SATA3).
The rear panel includes 2 USB 3.2 Gen2 ports (Type-A and Type-C), and 4 USB 3.2 Gen1 ports.
The motherboard provides D-Sub, DVI-D, and HDMI ports for graphics output.
